Amazing Machinery · AMH980-02 / AMH980-04

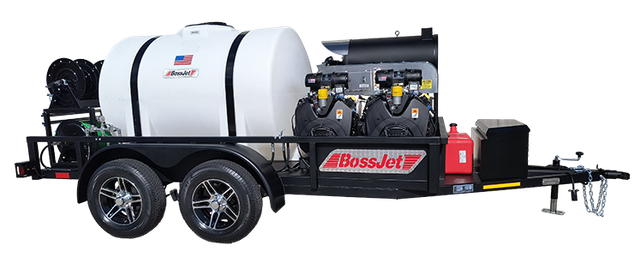

BossJet Max Hot Water Trailer Jetter

  • 400' x 1/2" low friction sewer hose
  • Gas · Hot water

Tandem-axle hot and cold trailer jetter with 12V Beckett diesel burner and 500 gallon tank; Honda GX690 (3,500 PSI at 16 GPM) or Kohler ECH980 (3,500 PSI at 22 GPM), 400' x 1/2" hose.

About this model

Amazing Machinery introduces the BossJet Max hot water line of trailer mounted jetters. Do more, faster with hot water. The V-braced tongue is added for safer trailering. These units are specially engineered for ease of operation.

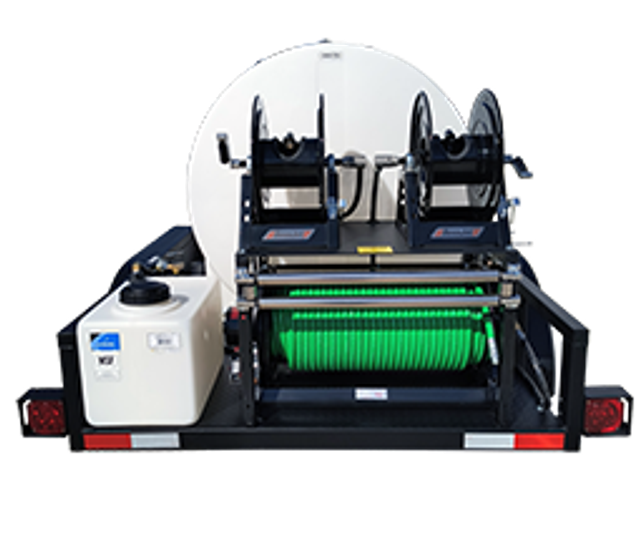

This jetter is for the big jobs, with a large 500-gallon water supply tank. The rear-mounted super duty 12V electric jetter hose reel and rear-stack manual reels (wash-down and garden hose) provide all the space for hose you might need.

Heat comes from a 12 volt Beckett diesel fired burner through a schedule 80 coil with stainless steel cover, delivering a 130 degree heat rise to a maximum of 195 degrees with an adjustable thermostat, all controlled from a NEMA 4 watertight control panel.

The AMH980-02 pairs Honda GX690 engines with GP TSF pumps for 3,500 PSI at 16 GPM; the AMH980-04 pairs Kohler ECH980 engines with GP TSF pumps for 3,500 PSI at 22 GPM. Both use 1/2" hose and have electric start.

Key features

  • 12 volt Beckett diesel fired burner with schedule 80 coil and stainless steel cover
  • 130 degree heat rise to max 195 degrees, adjustable thermostat
  • NEMA 4 watertight control panel
  • Gas engine with electric start, poly chain drive, ceramic plunger pump
  • 500 gallon water tank with low water shutdown and automatic overflow shutoff
  • Electric hose reel with hose guide, 400' x 1/2" low friction sewer hose
  • 6 piece sewer nozzle kit with cleaner, for cleaning up to 18" sewer lines
  • Deluxe tongue mounted tool box and 2 rear-stack mounted hose reels

Specifications

Spec sheet (PDF)
Engine (AMH980-02)
Honda GX690
Performance (AMH980-02)
3,500 PSI @ 16 GPM
Engine (AMH980-04)
Kohler ECH980
Performance (AMH980-04)
3,500 PSI @ 22 GPM
Pump
GP TSF
Drive
Poly chain drive
Burner
12 volt Beckett diesel fired
Temperature
130 degree heat rise, max 195 degrees
Coil
Schedule 80 with stainless steel cover, normalized ASTM A53/API PSL
Control Panel
NEMA 4 watertight
Diesel Fuel Tank
8.5 gallon
Gasoline Tank
8.5 gallon
Water Tank
500 gallon with plumbing
Jetter Hose
400' x 1/2" low friction sewer hose
Rear-Stack Reels
200' high pressure hose reel; 100' x 3/4" garden hose reel
Wash-Down Hose
50' with gun, wand, and tips
Line Size
For cleaning up to 18" sewer lines
Trailer
5 x 12 tandem axle, V-braced tongue, electric brakes, 7 pin connection
Tires
15" 6 ply, painted steel wheels
Dimensions
198"L x 79"W x 64"H
Shipping Weight
2,500 lbs
