Pressure Pro · S/VB1030HGE105/VHRM6

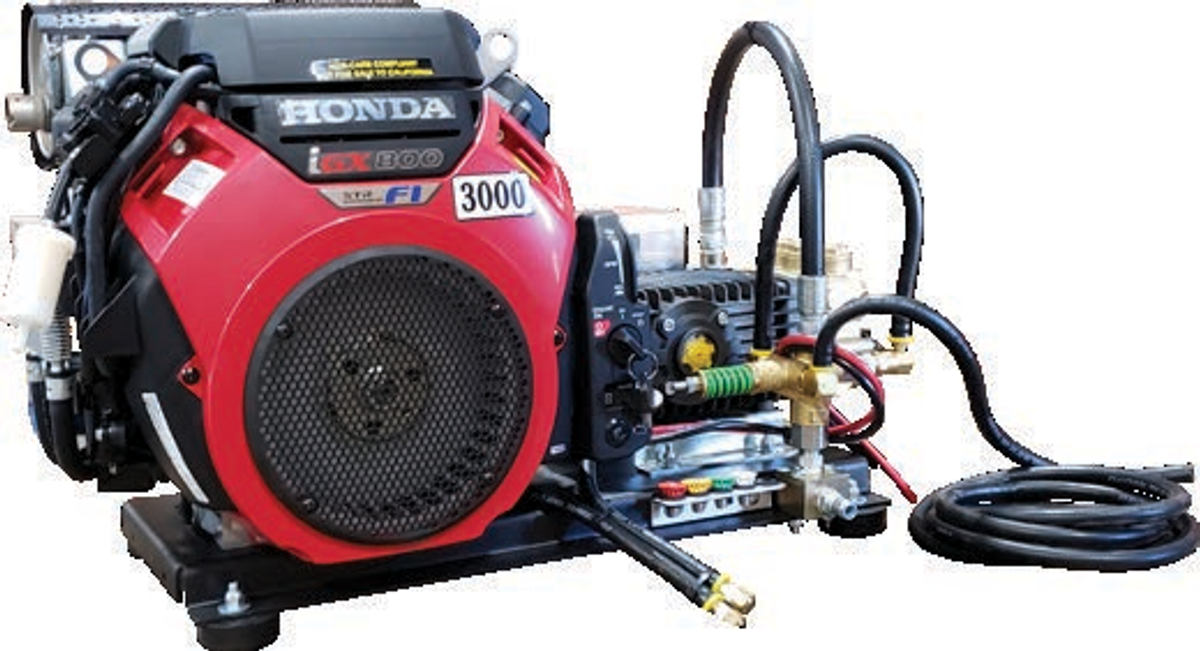

Pro Series iGX800 EFI Skid Pressure Washer
- 3,000 PSI
- 10 GPM
- Honda iGX800, electronic fuel injection
- Gas · Cold water
Fuel injected skid unit: 10 GPM at 3,000 PSI from a Honda iGX800 and a TSF2221 General Pump, on a 3VX banded belt drive and a powder coated steel skid.
About this model
This Pro series skid pairs Honda's electronically fuel injected iGX800 engine with a TSF2221 General Pump for 10 GPM at 3,000 PSI. Electronic fuel injection provides higher output and performance, with lower vibration and quieter operation.
Power transfer is through a 3VX banded belt system on a powder coated steel skid, with engine and pump oil drains for easy maintenance and an adjustable pressure YU21405S green spring unloader. The unit is set up for tank feed, with an inlet nipple and bypass hose.
Electric start is standard and includes a marine battery box; no battery or fuel tank is included. The S/VB1030HGE105/VHRM6 ships with a genuine Honda muffler - order S/VB1030HGE105 for the standard Pressure-Pro muffler. All units are completely factory assembled, tested in the USA, and delivered ready to operate.
Key features
- 10 GPM at 3,000 PSI
- Honda iGX800 with electronic fuel injection
- TSF2221 General Pump
- 3VX banded belt system for balanced power transfer
- Powder coated steel skid
- Genuine Honda muffler, or the Pressure-Pro muffler on S/VB1030HGE105
- Adjustable pressure YU21405S green spring unloader
- Set up for tank feed with inlet nipple and bypass hose
Specifications
Spec sheet (PDF)- Pressure
- 3,000 PSI
- Flow
- 10 GPM
- Engine
- Honda iGX800, electronic fuel injection
- Pump
- General Pump TSF2221
- Drive
- 3VX banded belt system
- Mount
- Powder coated steel skid
- Start
- Electric, marine battery box included (no battery supplied)
- Water feed
- Tank feed, inlet nipple and bypass hose
- Unloader
- YU21405S adjustable green spring
- Hose
- 50' x 1/2" high pressure with quick connects
- Nozzles
- 4 colour-coded quick connect spray nozzles
- Muffler
- Genuine Honda
- Fuel tank
- Not included
